DOUBLE-DECK REVERSING VALVES

Glass

Discover one of our newest products

VCL Double-Deck Reversing Valves

The VCL Reversing Valves can be used in plants for the float-, container- and special-purpose glass industry.

Our reversing valves are designed to control the flue gas and combustion air at the same time with only one valve pair.

Furthermore, the highly developed design features and specific materials lead to an operation up to three furnace campaign, which ensure a significant cost benefit.

About the product

Key features

  • Robust design, high reliability, and quality
  • Control of flue gas and combustion air at the same time
  • Uncooled and temperature resistant design to ensure a smooth operation up to 750°C medium temperature
  • Tight shut-off
  • Low maintenance
  • Easy overhaul and restoration
  • Possibility of manual operation in emergency cases
  • Electrical or pneumatic actuation
  • Low energy consumed based on counter balanced valves gates
  • Applicable for both types of flue duct (Brick-wall and steel duct)
  • Designed for any sizes of duct cross sections
  • Side-by-side, back-to-back or angular installation

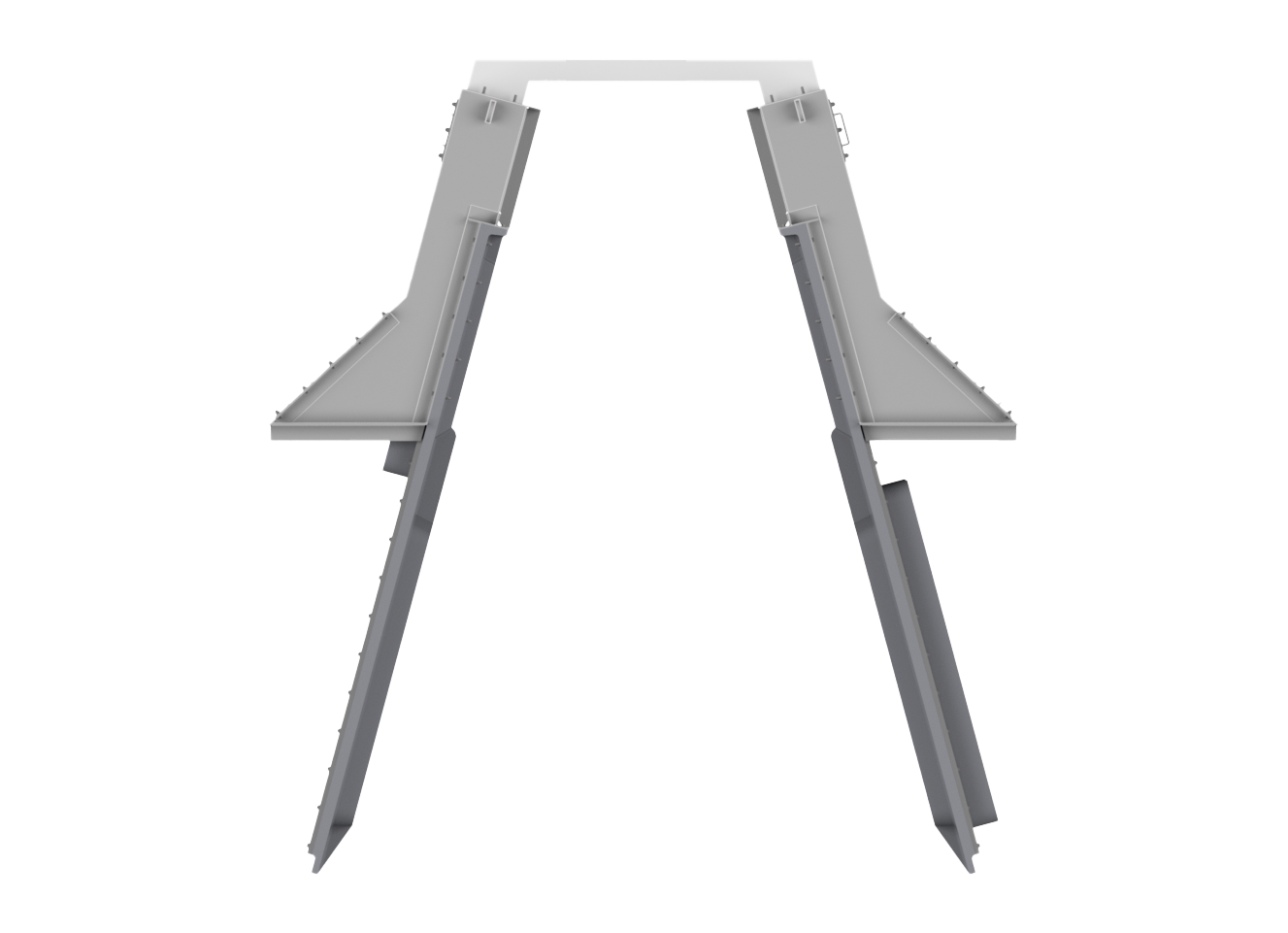

Back-to-back

(opposite arrangement)

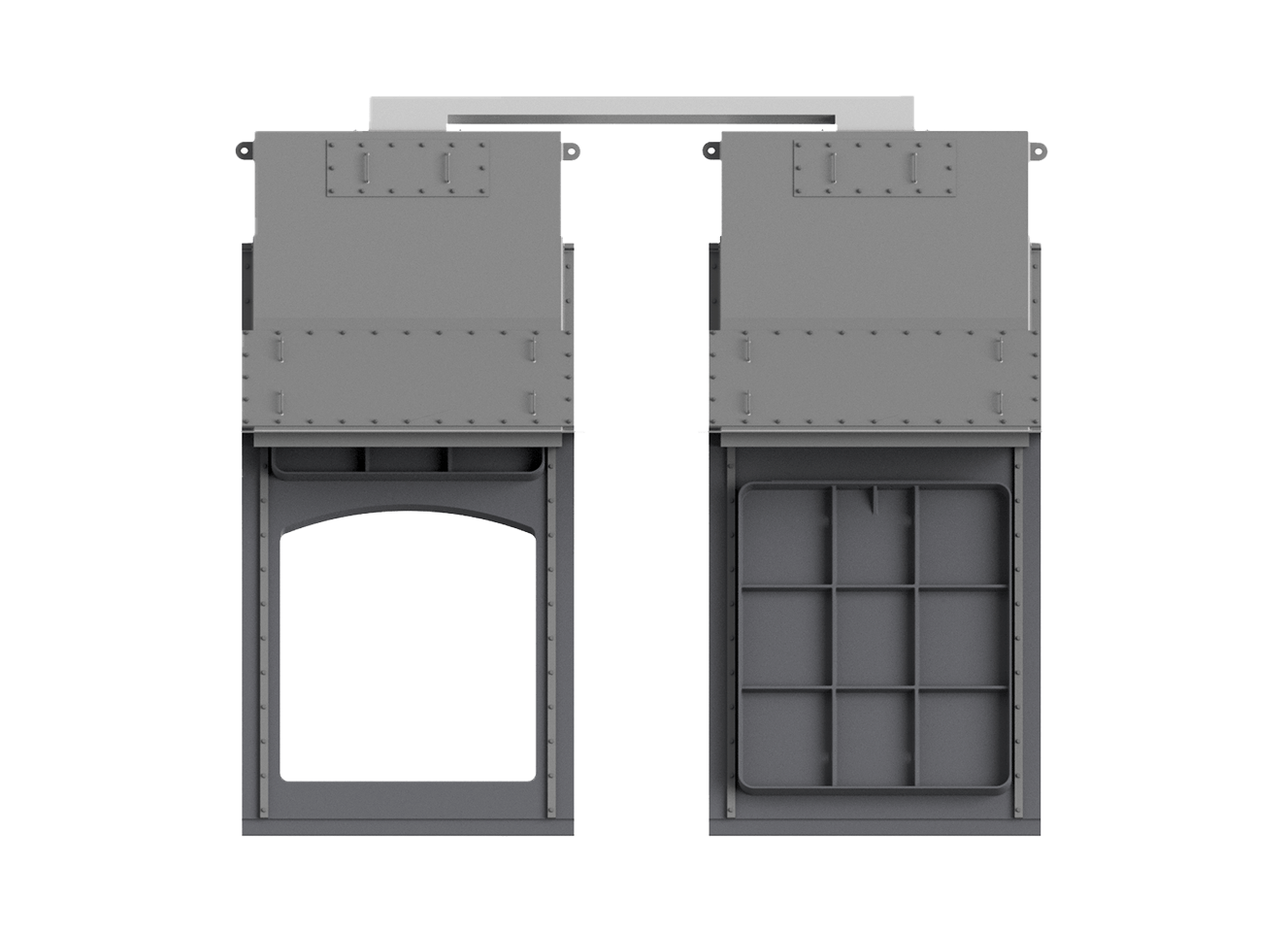

Side-by-side

(parallel flue ducts)

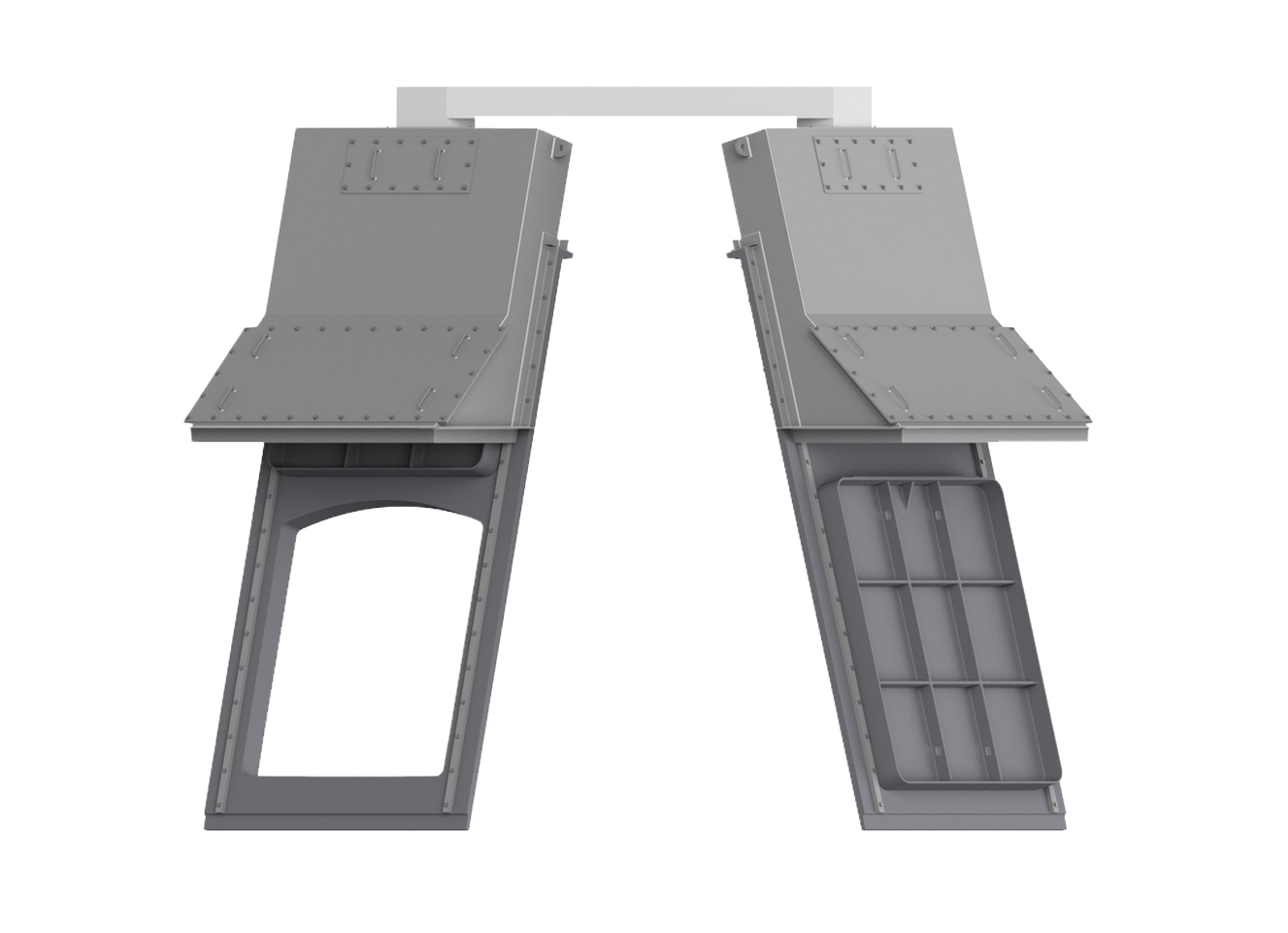

Angular position
