ETHYLENE PRODUCTION SGV

Oil & gas downstream processes

Valves for ethylene production SGV

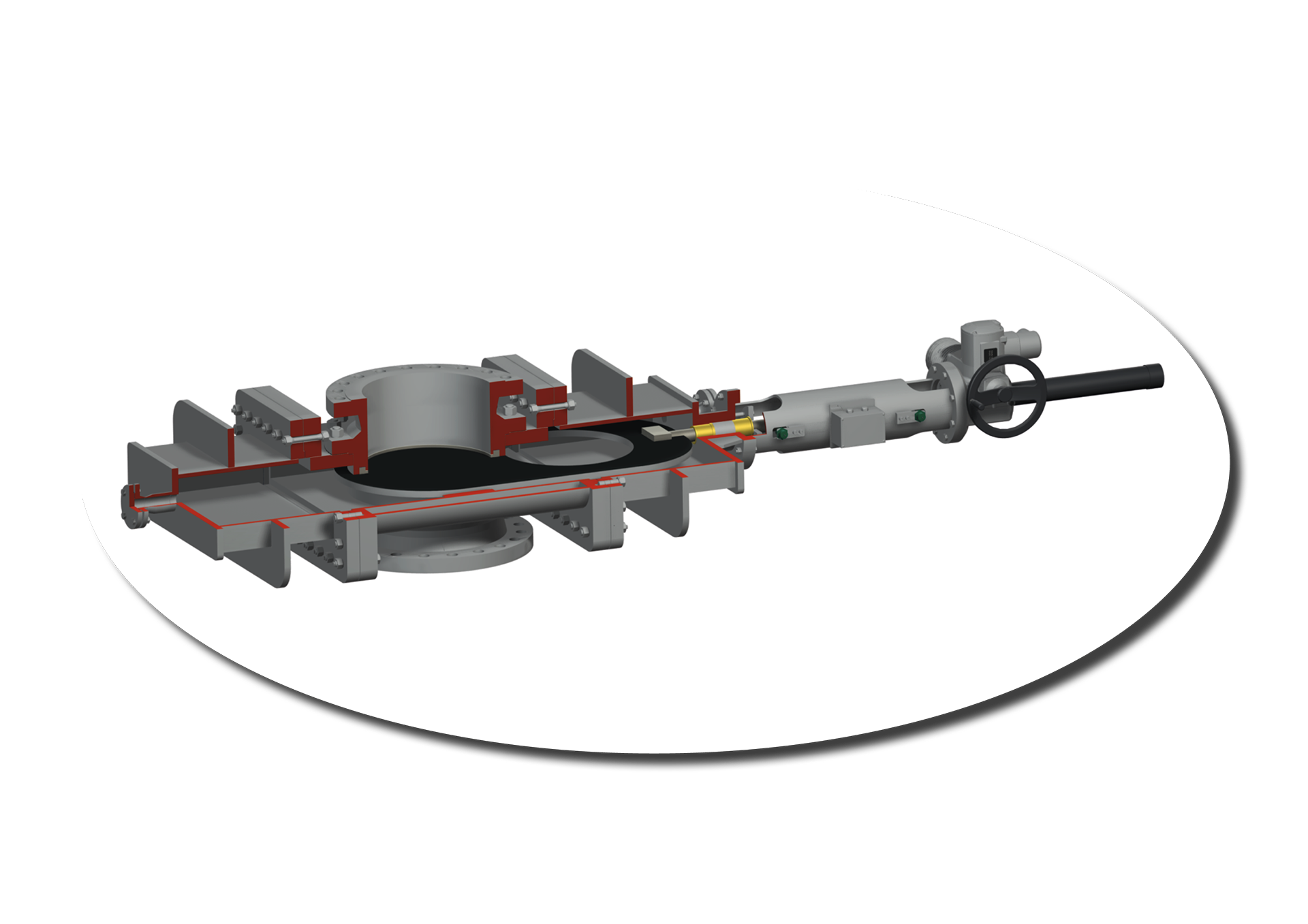

Transfer Line and Decoke Line Isolation Valves, SINGLE GATE-Plate Design

In the field of Ethylene Production, VCL offers Transfer Line and Decoke Line Isolation Valves tailored to your needs.

The Single Gateplate type Gate Valve has a higher tightness and subsequently a higher safety level than other designs. It provides a permanent contact with defined, positive sealing force between the upstream- and downstream valve seats and gate plate by means of precise, mechanical adjustment independent of the medium flow direction.

Key features

  • Double Block and Purge performance within one valve body
  • No springs in use
  • No lift-off in case of back-pressure.
  • Special valve-body design to avoid unequal seat deformation provides :
           – higher tightness (20% less steam leakage)
           – less deformation of the connecting flanges
           – less stress to the valve-body welding-seams
             > better fatigue performance
  • Open throughway without flow restrictions
  • in open position
  • Electrical, hydraulic or pneumatic options
  • available for valve actuation
  • Valve design according to customer demands and licensors/customers specifications

Typical Figures

  • size from 10” (250 mm) up to 58” (1450 mm)
    operating temperature up to 525° C
  • operating pressure up to 16 bar(g)
  • actuation: electric, pneumatic or hydraulic

Other sizes, design features and / or operating features are available on request.

Yearly Savings Up To...

1500000

EURO (€)

14100

tons CO2

4700

tons COKE
