GOGGLE VALVES

„MAN SAFE“ isolation valves

Goggle Valves

Design Features Of Goggle Valves

  • Fabricated construction
  • Valve actuation in accordance to customer´s requirements (man. / electr. / hydr. / pneum.)
  • Execution with mechanical lifting devices available
  • Pressure rating up to 6 bar
  • Service temperatures up to 350 °C
  • Nominal sizes up to DN 5.000
  • Other sizes or operating conditions on request
  • Fabricated construction
  • Valve actuation in accordance to customer´s requirements (man. / electr. / hydr. / pneum.)
  • Execution with mechanical lifting devices available
  • Pressure rating up to 6 bar
  • Service temperatures up to 350 °C
  • Nominal sizes up to DN 5.000
  • Other sizes or operating conditions on request
  • Fabricated construction
  • Valve actuation in accordance to customer´s requirements (man. / electr. / hydr. / pneum.)
  • Execution with mechanical lifting devices available
  • Pressure rating up to 6 bar
  • Service temperatures up to 350 °C
  • Nominal sizes up to DN 5.000
  • Other sizes or operating conditions on request
  • Fabricated construction
  • Valve actuation in accordance to customer´s requirements (man. / electr. / hydr. / pneum.)
  • Execution with mechanical lifting devices available
  • Pressure rating up to 6 bar
  • Service temperatures up to 350 °C
  • Nominal sizes up to DN 5.000
  • Other sizes or operating conditions on request

This Design Guarantees

  • Absolutely tight, so called “Man safe” isolation device, although used for dangerous and toxic gaseous media (even with high dust content).
  • Even in the event of a leakage the gas can either escape to the atmosphere (open design) or is collected in the hoods of the enclosure and can be safely extracted into safe area (enclosed design).
  • After traversing, the valve plate is clamped between the body sealing surfaces and is sealed by elastic seals inserted into grooves on the sealing faces of goggle and blind.
  • In the event of power loss, the valve keeps tight, as the required sealing force is created by the spring-loaded clamping devices

Yearly Savings Up To...

1500000

EURO (€)

14100

tons CO2

4700

tons COKE

VCL – Product Range

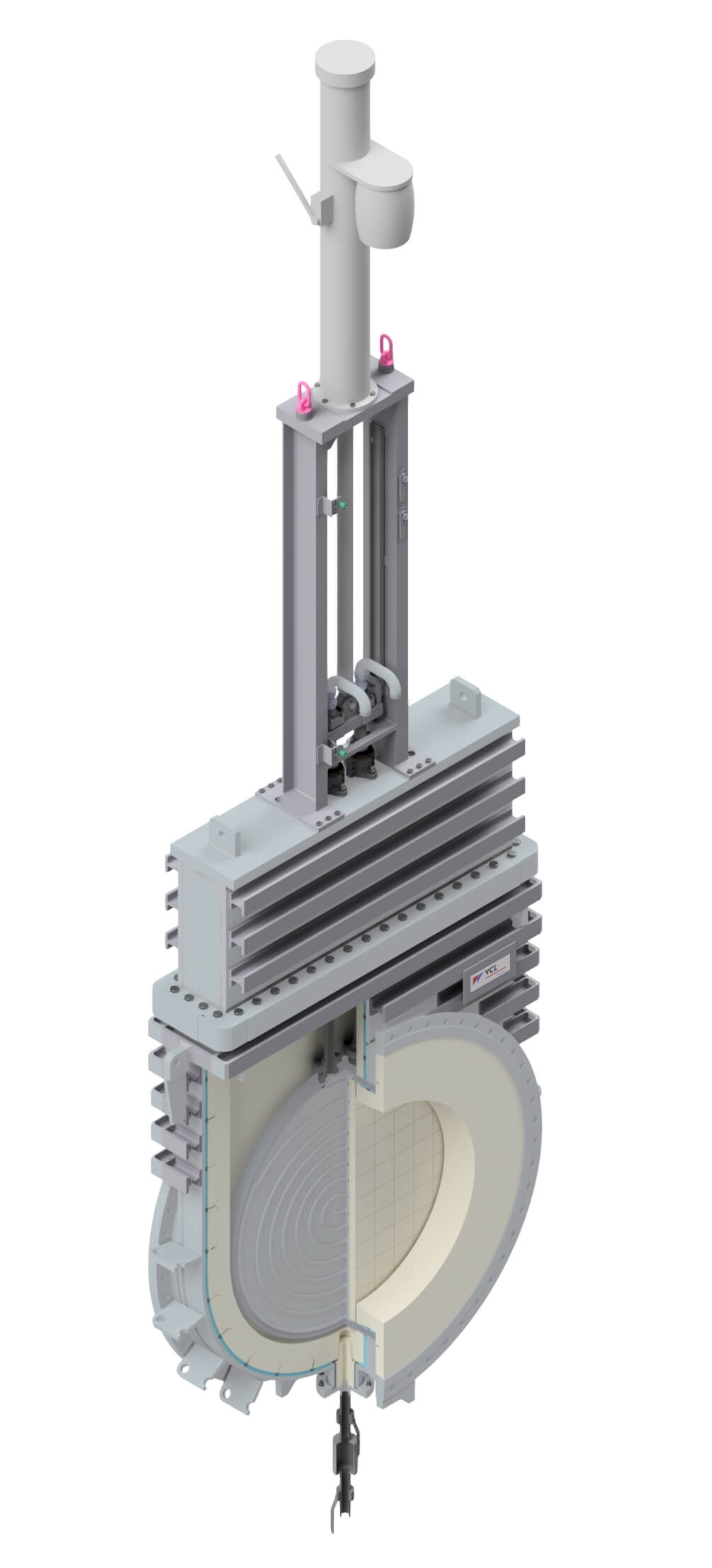

Hot Blast Valves

With minimum cooling and exchangeable cooling rings.

See More
Download PDF

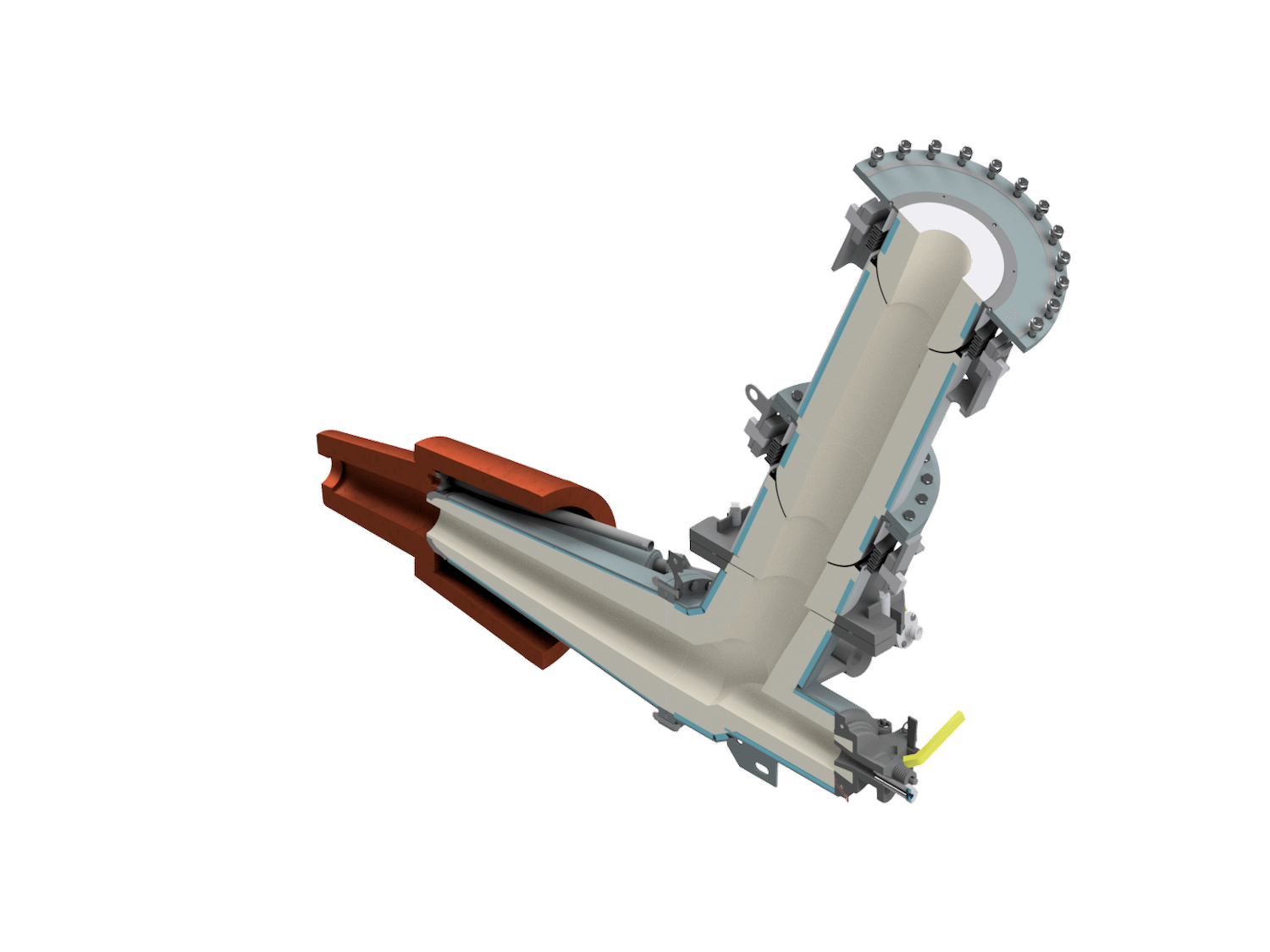

Tuyere Stocks

Energy saving patented design

See More
Download PDF
Double Plate Wedge Gate Valves

Single And Double Plate Isolation Valves

See More
Download PDF
Dust Discharge Valves

Rotating Disc

See More
Download PDF

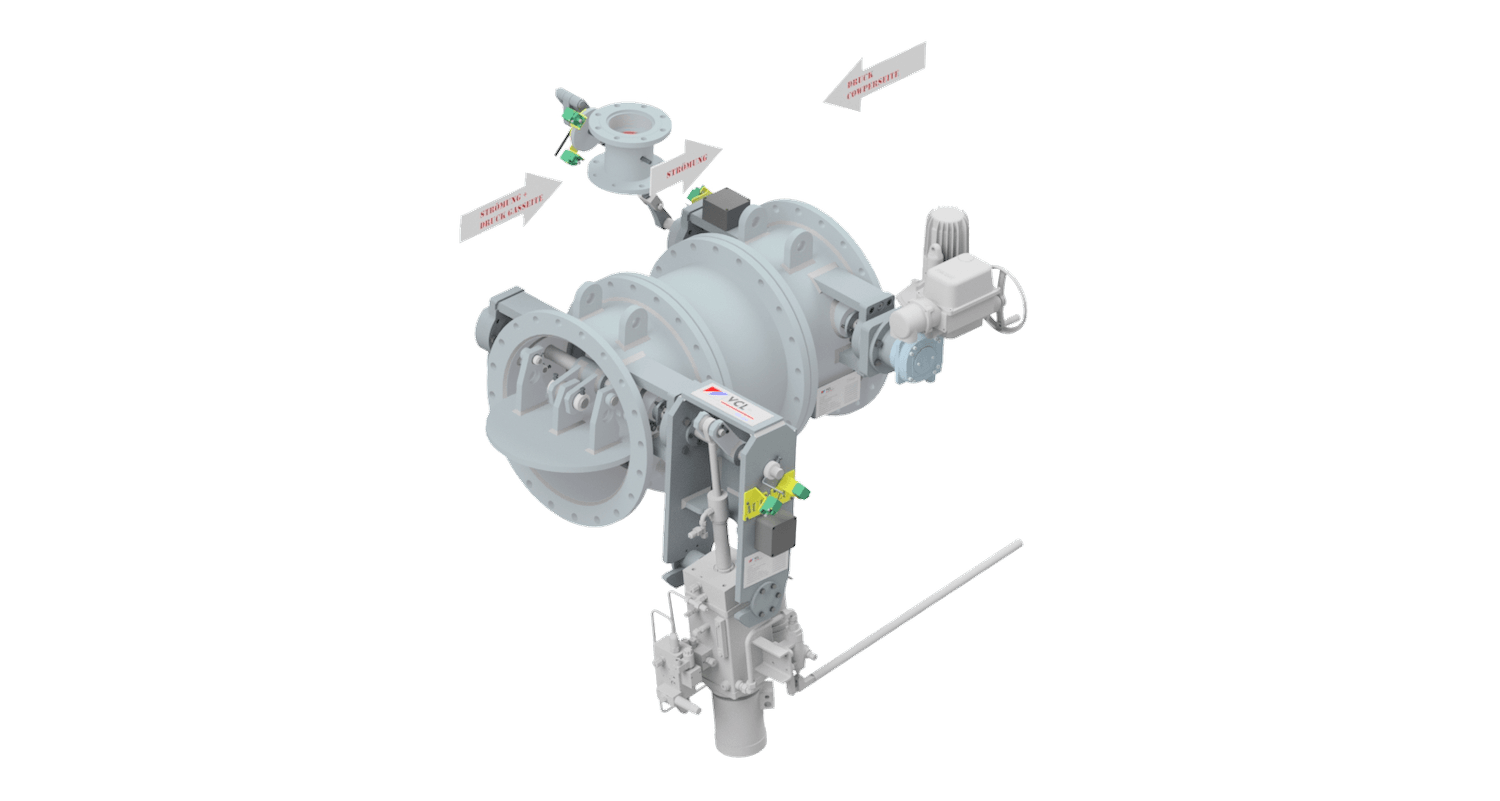

Lever Valves

Improved design

See More
Download PDF
Goggle Valve

„MAN SAFE“ isolation valves

See More
Download PDF
Double Eccentric Valves
Butterfly and Louver Valves

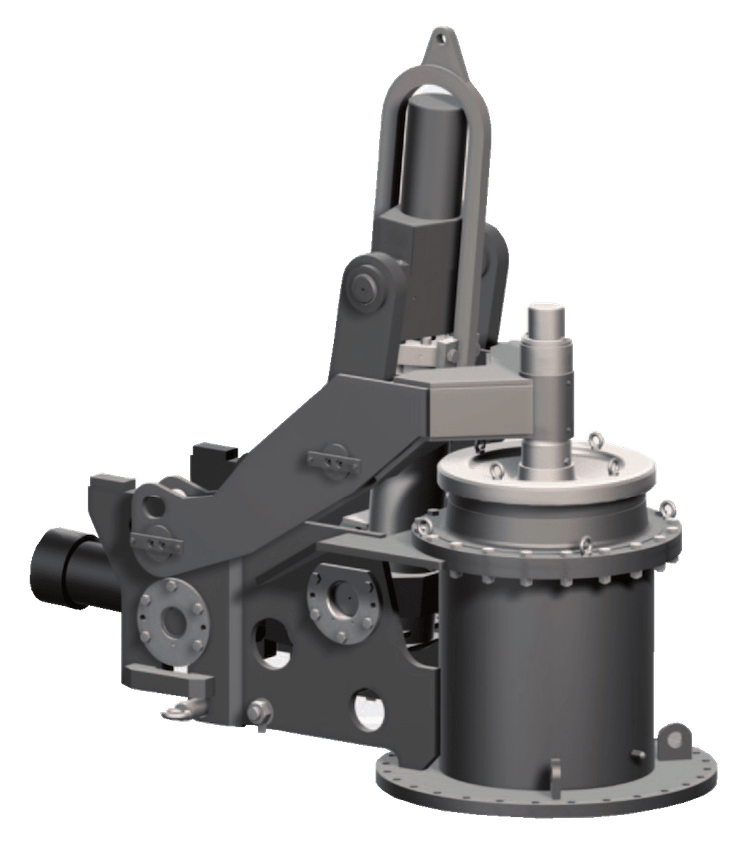

Bleeder Valves

Blast furnace safety valves

See More
Download PDF
Equalizing & Relief Valve

Rapid material hopper pressurisation and relief, and abrasive, dust-laden gas led to the devel- opment of the VCL full-section-opening swing-type equalizing and relief valve.

See More
Download PDF

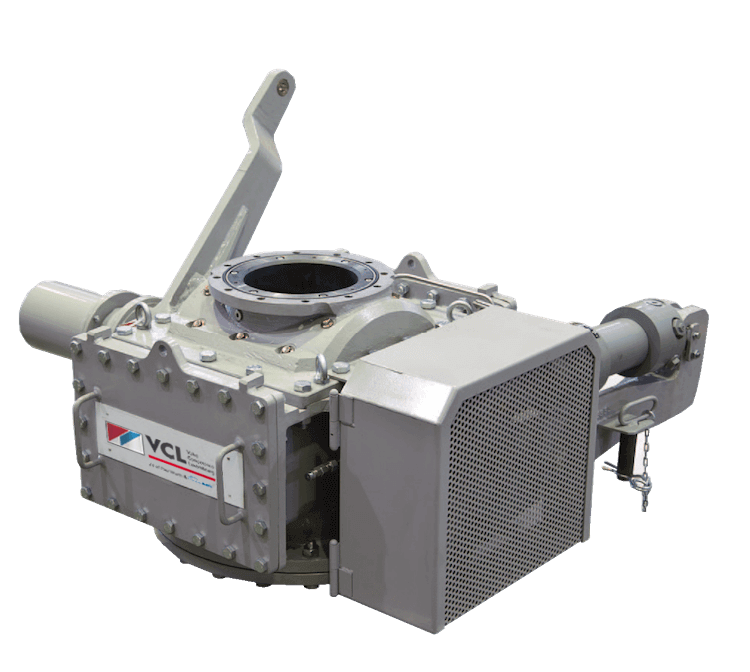

Dust Discharge Valve

GRITZKO II Dust Discharge Control Valve

See More
Download PDF
Stove and Blast Furnance Special Valves
  • Equalizing / Relief Valves
  • Coffee Pot Bleeder Valves
  • Google Valves
  • Two Lever Valves
  • Butterfly Valves
  • Double Eccentric Valves
  • Snort Valves
  • Back Draft Valves
  • Hot Blast Valves
  • Explosion Valves
  • Louver Valves
High-performant, reliable and Secure Valves for
  • top gas pressure equalizing and relief valve
  • control of process media in large diameter pipelines
Additional Products
  • Push Lever Valves
  • Snort Valves
  • Bleeder Valves
  • Equalizing & Relief Valves
  • Back Draft Valves
  • Non Return Valves
  • Line Blinds
Additional Services
  • Repair Service
  • Refurbishment and Modifications
  • Spare parts for each kind and brand of Valves
